Descrizione
Informazioni aggiuntive

Descrizione

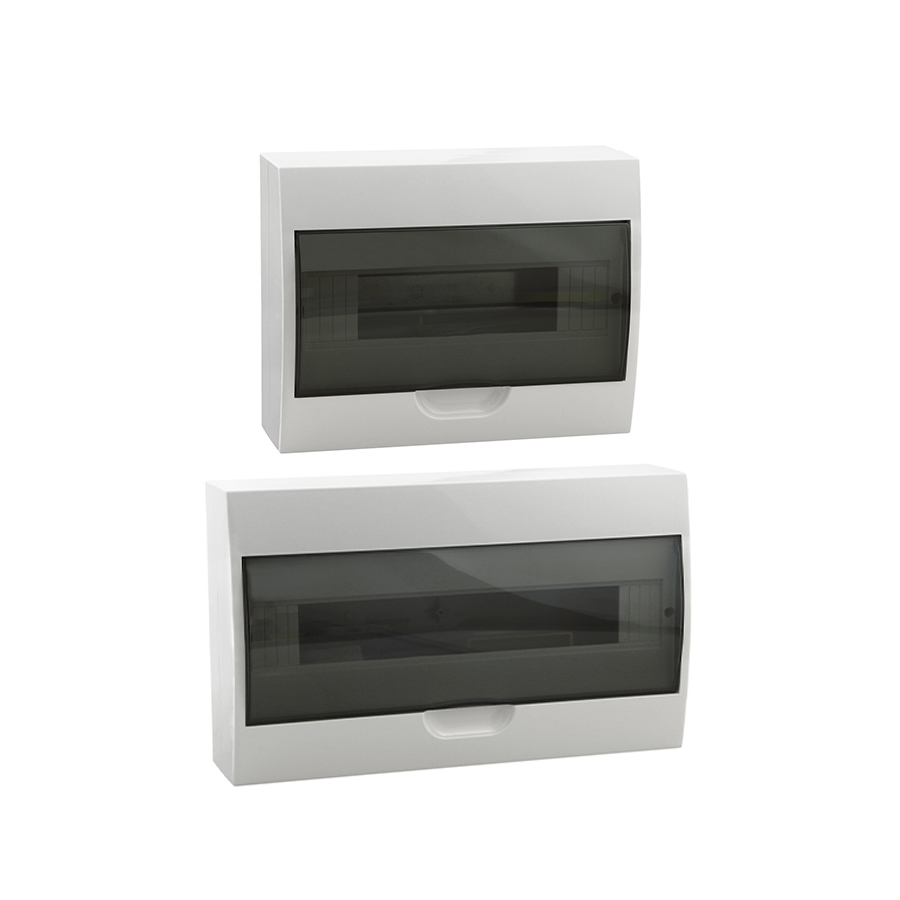

Quadri elettrici della serie DB che soddisfano il requisito della resistenza al calore con temperatura a 650°C possono essere utilizzati esclusivamente su superfici incombustibili (ad esempio pareti solide realizzate in materiali non infiammabili). Non possono essere applicati su superfici infiammabili (ad esempio cartongesso, legno), su cosiddette “pareti vuote” o su cavedi tecnici.

Scheda tecnica 8 moduli:
Tensione nominale [V]: 230/400 AC
Corrente nominale [A]: 63
Frequenza nominale [Hz]: 50
Grado di protezione contro le scosse elettriche: II
Materiale: plastica
Moduli: 8P
resistenza alla temperatura [°c]: 650
Grado IK: 06
Grado IP: 40
numero di file: 1

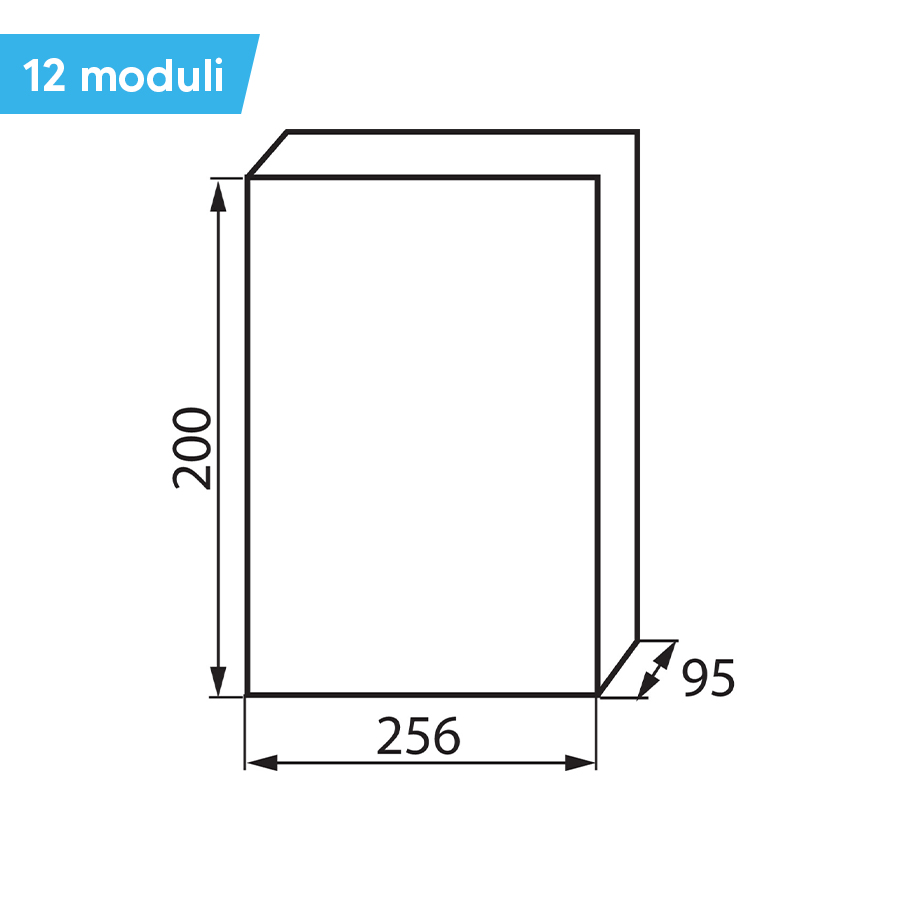

Scheda tecnica 12 moduli:
Tensione nominale [V]: 230/400 AC
Corrente nominale [A]: 63
Frequenza nominale [Hz]: 50
Grado di protezione contro le scosse elettriche: II
Materiale: plastica
Moduli: 12P
resistenza alla temperatura [°c]: 650
Grado IK: 06
Grado IP: 40
numero di file: 1

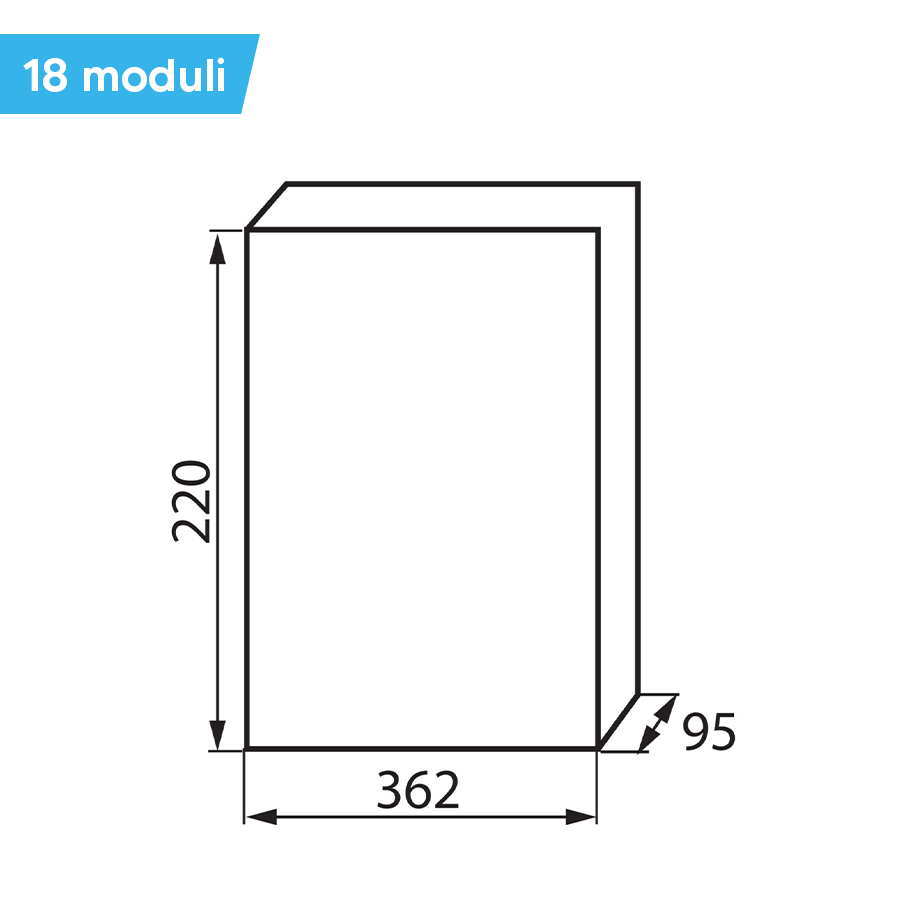

Scheda tecnica 18 moduli:
Tensione nominale [V]: 230/400 AC
Corrente nominale [A]: 63
Frequenza nominale [Hz]: 50
Grado di protezione contro le scosse elettriche: II
Materiale: plastica
Moduli: 18P
resistenza alla temperatura [°c]: 650
Grado IK: 06
Grado IP: 40
numero di file: 1

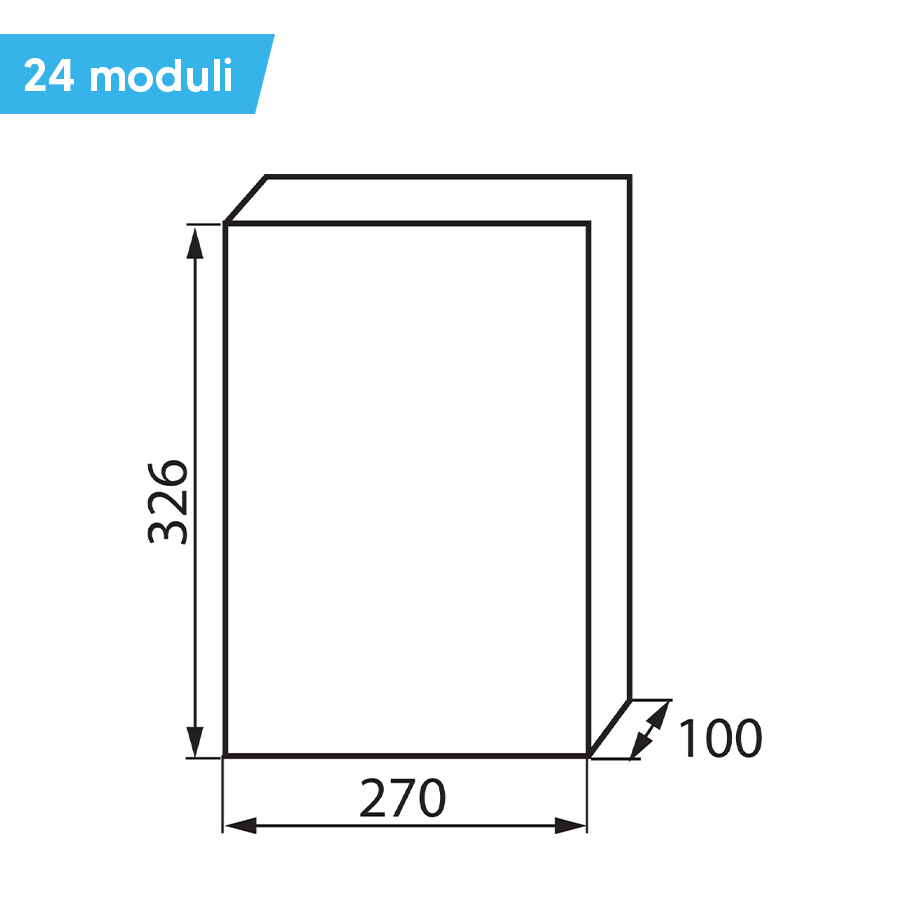

Scheda tecnica 24 moduli:
Tensione nominale [V]: 230/400 AC
Corrente nominale [A]: 63
Frequenza nominale [Hz]: 50
Grado di protezione contro le scosse elettriche: II
Materiale: plastica
Moduli: 2x12P
resistenza alla temperatura [°c]: 650
Grado IK: 06
Grado IP: 40
numero di file: 2

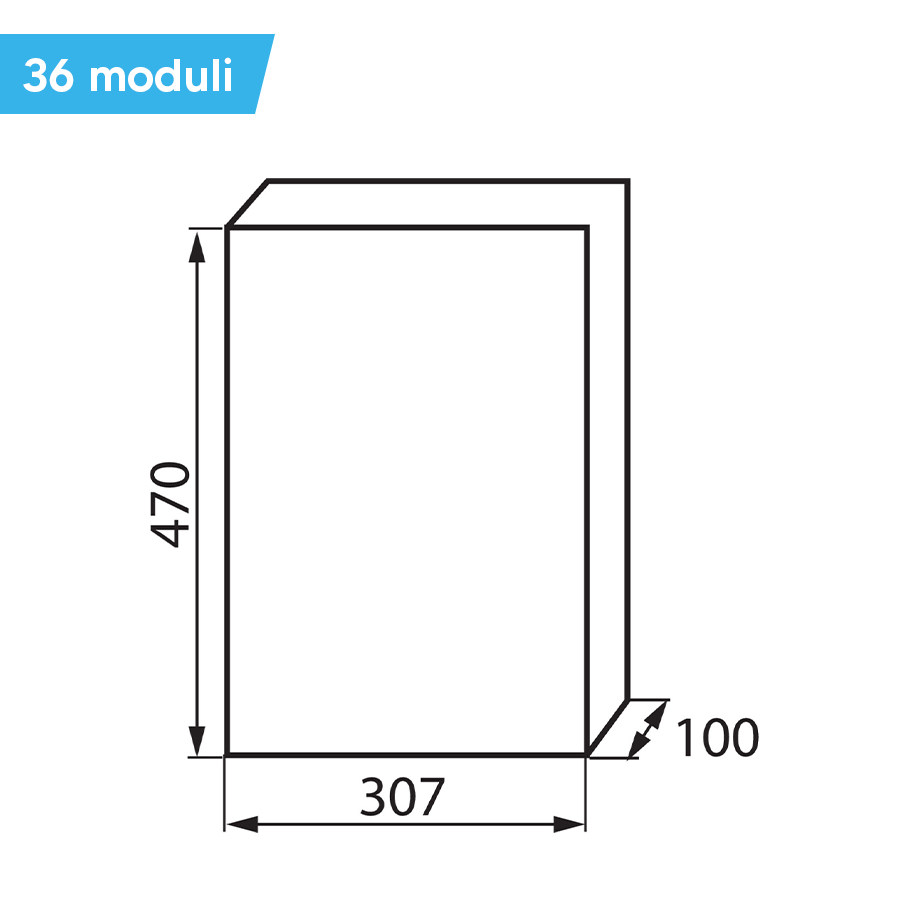

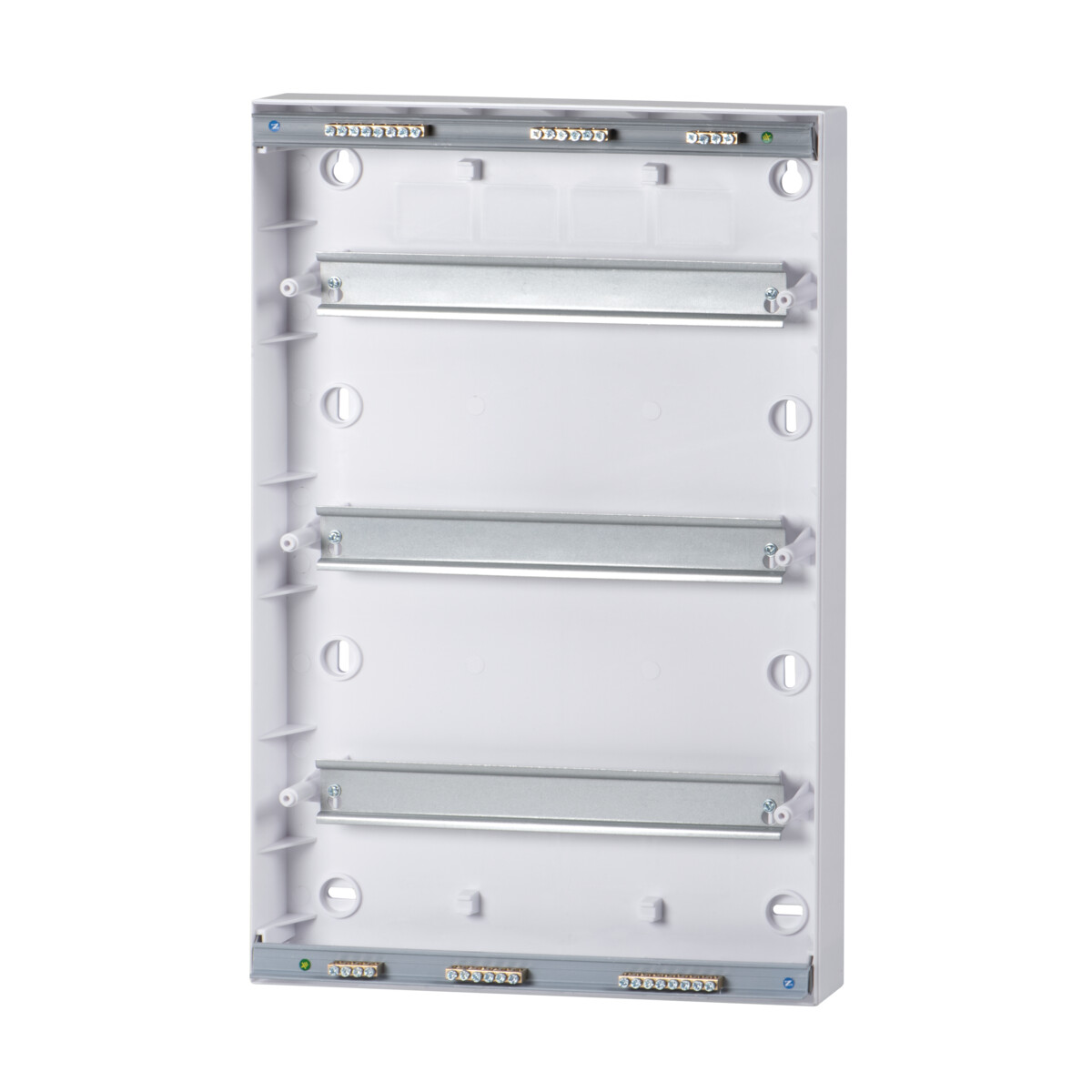

Scheda tecnica 36 moduli:
Tensione nominale [V]: 230/400 AC
Corrente nominale [A]: 63
Frequenza nominale [Hz]: 50
Grado di protezione contro le scosse elettriche: II
Materiale: plastica
Moduli: 3x12P
Resistenza alla temperatura [°c]: 65
Grado IK: 06
Grado IP: 40
numero di file: 3

Informazioni aggiuntive

tipologia	12 moduli, 18 moduli, 24 moduli, 36 moduli, 8 moduli
